MIOR FOLD
Folding wheelchair ramp for vehicles, homes, and multi-location use
400 kg
Capacity
9 kg/m
Weight/meter
20 cm increments — max 3.0 m recommended
Length

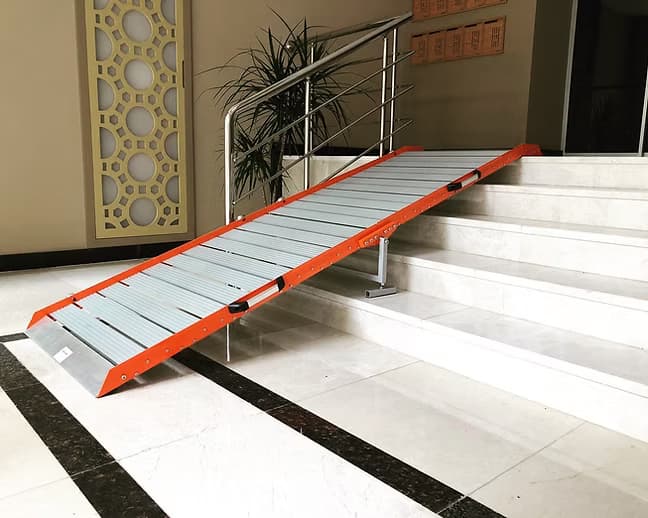

Folds to one-third of deployed length
Two-panel design reduces storage footprint significantly
- 6082-T6 Aluminum — weatherproof construction for all seasons
- 400 kg Capacity — supports electric wheelchairs and heavy mobility scooters
- Weight per meter: 9 kg/m — balance of portability and structural strength
- Two-panel folding mechanism — folds to half deployed length

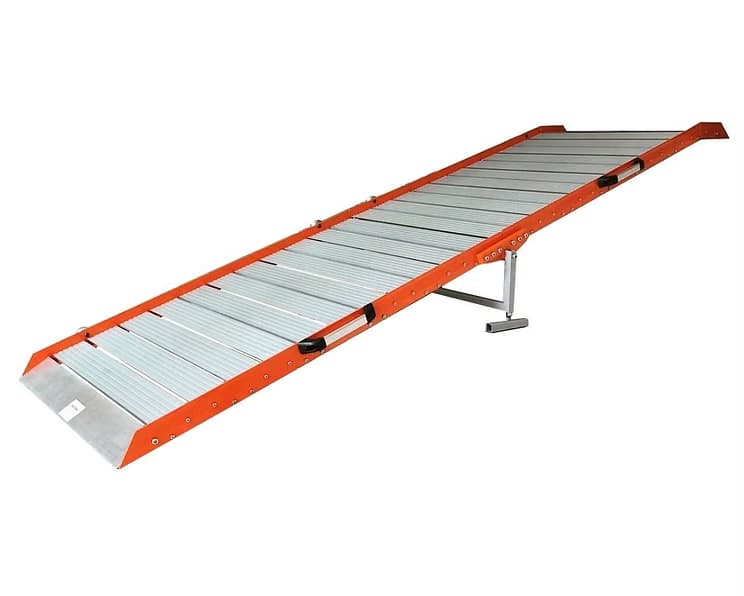

Reinforced center hinge mechanism
Locks flat under load — no flex or movement during crossing
- 8 cm outer / 5.5 cm inner side borders — secure wheelchair wheel guidance
- High-visibility safety rails — improves user confidence in all lighting
- Manufactured in 20 cm increments — recommended maximum 3.0 m total length

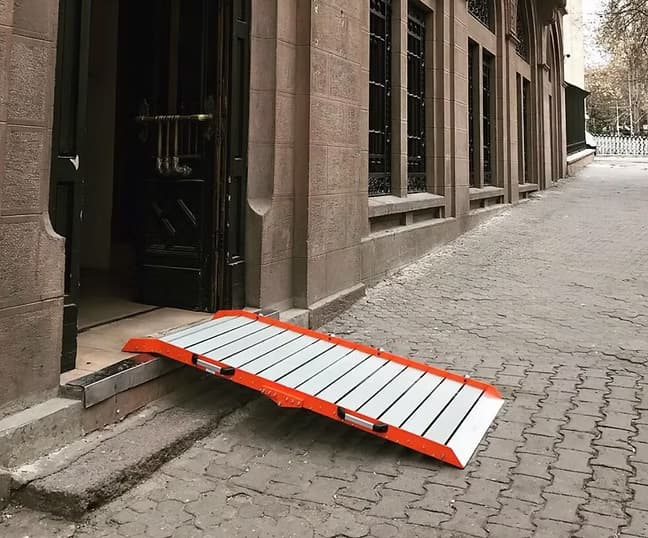

Perfect for vehicle rear doors
Lightweight enough for single-person deployment and storage
- Wheelchair-accessible vans and adapted vehicles
- Residential entrances requiring frequent ramp deployment
- Healthcare service providers visiting multiple locations daily
- Public buildings with variable threshold heights
Technical Specifications
MIOR FOLD — Folding wheelchair ramp for vehicles, homes, and multi-location use
capacity
400 kg
material
6082-T6 Aluminum
weightPerMeter
9 kg/m
sideBorders
8 cm outer / 5.5 cm inner
width
Multiple options available
length
20 cm increments — max 3.0 m recommended
type
Two-panel folding
usage
Indoor & Outdoor
Series manufacturing and deliveries are planned for 2026. Expected lead times are approximately 4–8 weeks depending on configuration and order volume. Misuse, overloading, or incorrect installation are not covered by warranty.
